EDI NotePad

EDI NotePad

November 9, 2018

Liaison has made available a free EDI (Electronic Data Interchange) editor here.   As you can see in this example, EDI NotePad takes a raw EDI like this:



ISA*01*0000000000*01*0000000000*ZZ*ABCDEFGHIJKLMNO*ZZ*123456789012345*101127*1719*U*00400*000003438*0*P*>
GS*PS*1234567890 *999999999 *20120126*1211*1*T*004010
ST*830*0001
BFR*00**001*DL*A*19990607*19991029*19990611
N1*SU*STURGIS MOLDED PRODUCTS*92*C84A
N2*STURGIS MOLDED PRODUCTS *70343 CLARK STREET
N3*PO OX 246 *STURGIS, MI 49091
LIN**PC*AA017830-1441*PD*TERMINAL (AN PC )*PO*C01000*RN*001
UIT*EA
PO4*1*96*X4
REF*DK*A22
PER*EX*JOHN DOE*TE*4239827000*****12345
FST*1728*C*D*19990614
FST*1440*C*D*19990615
FST*1440*C*D*19990616
FST*1440*C*D*19990617
FST*1440*C*D*19990618
FST*7392*D*W*19990621
FST*7392*D*W*19990628
LIN**PC*AA017380-2030*PO*C50000*RN*001
UIT*PC
PO4*1*108*X4
REF*DK*A22
PER*EX*JOHN DOE*TE*4239827000*****12345
FST*108*C*D*19990614
FST*108*C*D*19990615
FST*108*C*D*19990616
FST*216*C*D*19990617
FST*108*C*D*19990618
FST*756*D*W*19990621
FST*756*D*W*19990628
CTT*2
SE*31*0001
GE*1*1
IEA*1*000000018

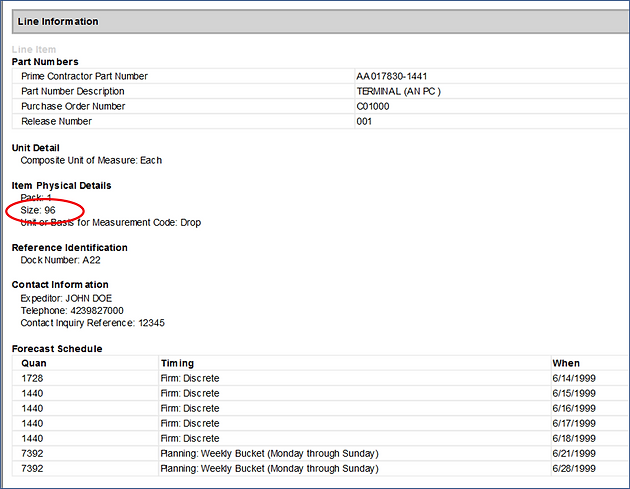

. .  and arranges the data in an easy to read form which adds descriptive labels to the EDI codes.





So for example, it reads the ST*830 code as, "Planning Schedule with Release Capability", and finds the pack size as 96 from the code, PO4*1*96*X4.



The data can be viewed in several different formats:  HTML (as shown above); Text; Hex; or XML:





A full professional version can be purchased.
